Bool6

Warning

GSA-Grasshopper plugin is pre-release and under active development, including further testing to be undertaken. It is provided "as-is" and you bear the risk of using it. Future versions may contain breaking changes. Any files, results, or other types of output information created using the plugin should not be relied upon without thorough and independent checking.

Icon

Did you know?

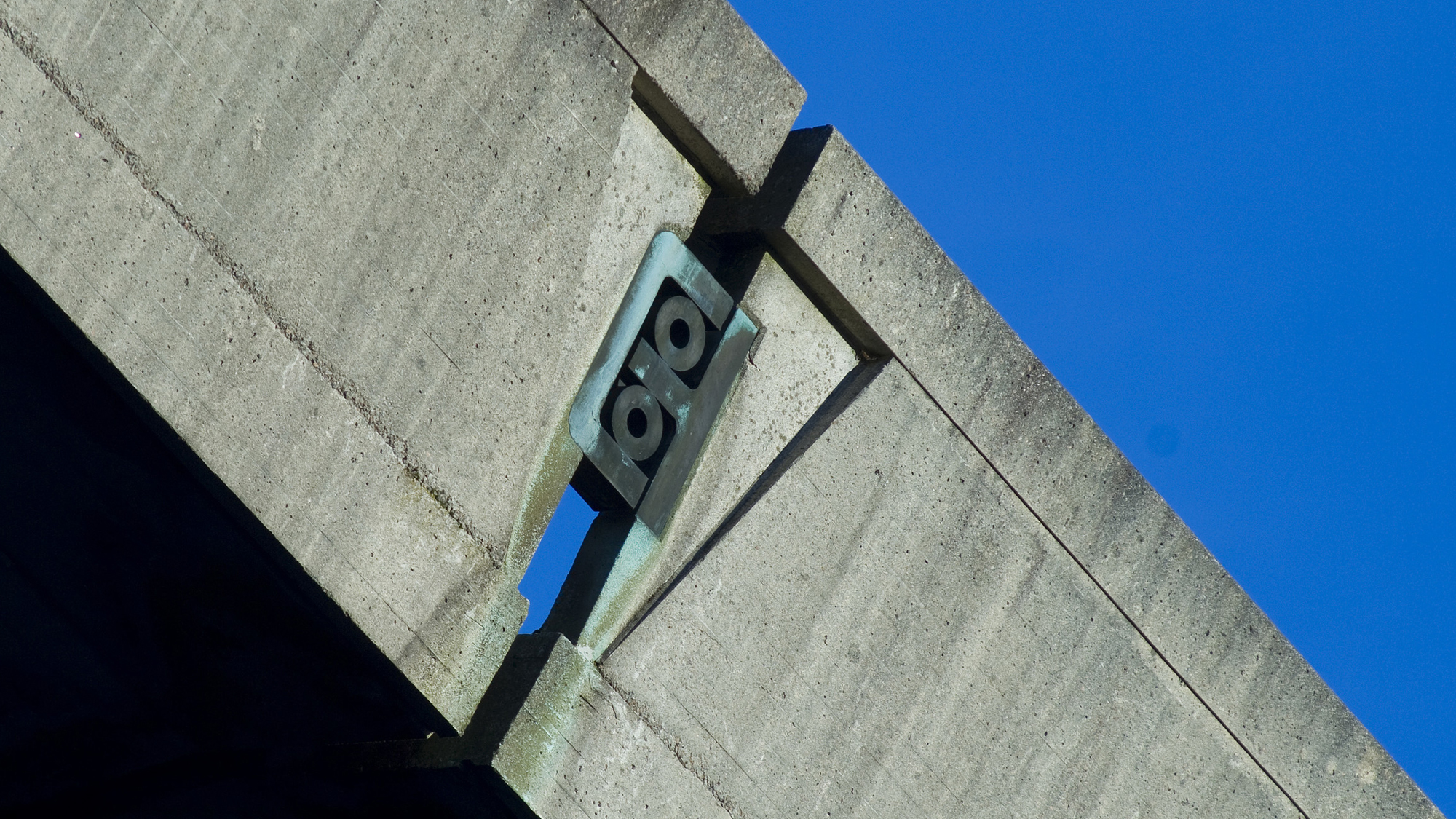

The Bool6 icon takes inspiration from the central pin/hinge/charnier connection Ove Arup's Kingsgate footbridge. (c) Giles Rocholl / Arup

Description

A Bool6 contains six booleans to set releases in Element 1Ds and Member 1Ds, or restraints in Nodes.

Properties

Icon	Type	Name	Description
	Boolean	X	Release or restrain for translation in the X-direction.
	Boolean	Y	Release or restrain for translation in the Y-direction.
	Boolean	Z	Release or restrain for translation in the Z-direction.
	Boolean	XX	Release or restrain for rotation around the X-axis.
	Boolean	YY	Release or restrain for rotation around the Y-axis.
	Boolean	ZZ	Release or restrain for rotation around the Z-axis.

Note: the above properties can be retrieved using the Edit Bool6 component
