Axes

Axis definitions​

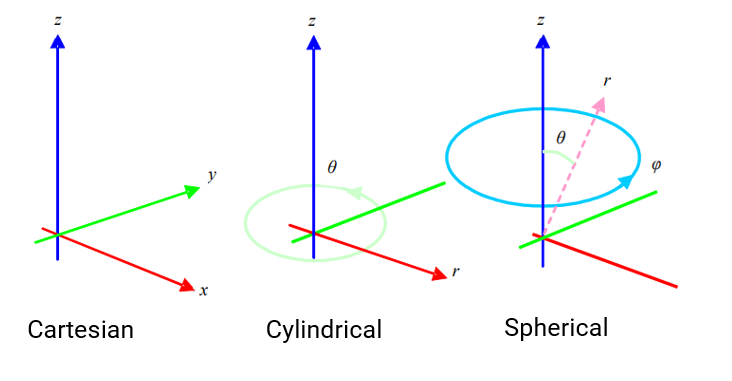

The following diagrams describe the default axes definitions.

axes-states

1D element axes: Non-vertical​

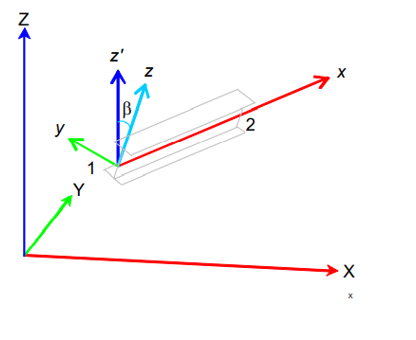

The following diagrams describe the default local axes for non-vertical 1D elements

non vertical beam

1D element axes: Vertical​

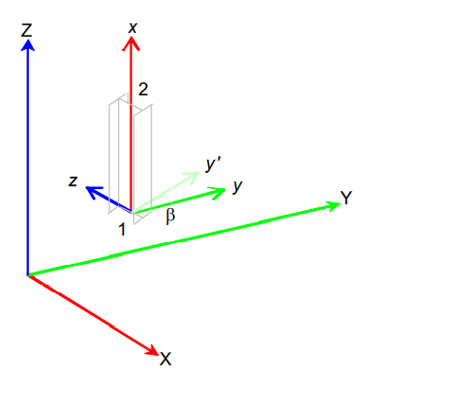

The following diagrams describe the default local axes for vertical 1D elements

beam-vertical
