Unit number

Icon
UnitNumber

Description​

GSA-Grasshopper includes a new way to work with units inside Grasshopper; we call this parameter a UnitNumber. For components that are using a UnitNumber as input parameter you can simply input a number as usual in GSA and the component will automatically convert it into the selected unit on the component's dropdown.

Definition

A UnitNumber is technically a Quantity defined as:

Quantity=Value×Measure.Quantity = Value \times Measure.

We are using the opensource library UnitsNet and have extended it with engineering units. The project is opensource, and should you require a unit that is not supported you can add it to either UnitsNet or OasysUnits.

Create unit number​

The following units have been exposed (many more are available in UnitsNet, let us know if you need them exposed...):

  • Angle
  • Length
  • Area
  • Volume
  • AreaMomentOfInertia
  • Force
  • ForcePerLength
  • ForcePerArea
  • Moment
  • Stress
  • Strain
  • AxialStiffness
  • BendingStiffness
  • Curvature
  • Mass
  • Density
  • Temperature
  • Velocity
  • Acceleration
  • Energy
  • Ratio
  • Time
  • LinearDensity
  • VolumePerLength
  • SectionModulus

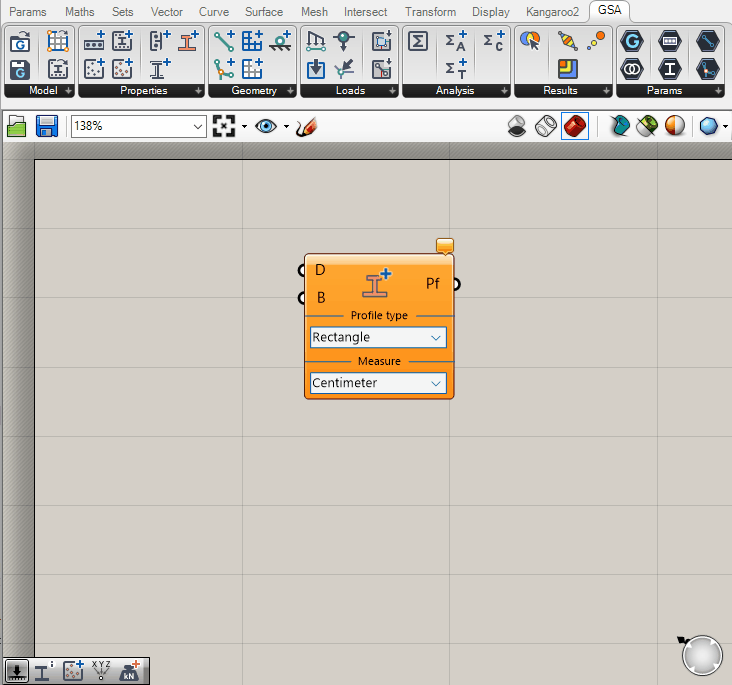

As mentioned, most components having UnitNumber inputs will also have a dropdown for you to select the unit . You can input a normal slider component to create a UnitNumber input of the selected unit, or you can use the Create UnitsNumber component to create (and mix) your own: CreateUnitNumber

Convert unit number​

Aside from creating a Unit Number from scratch, you can also convert a UnitNumber between units of the same type. This is handy for results that you may want to convert into a more familiar unit.

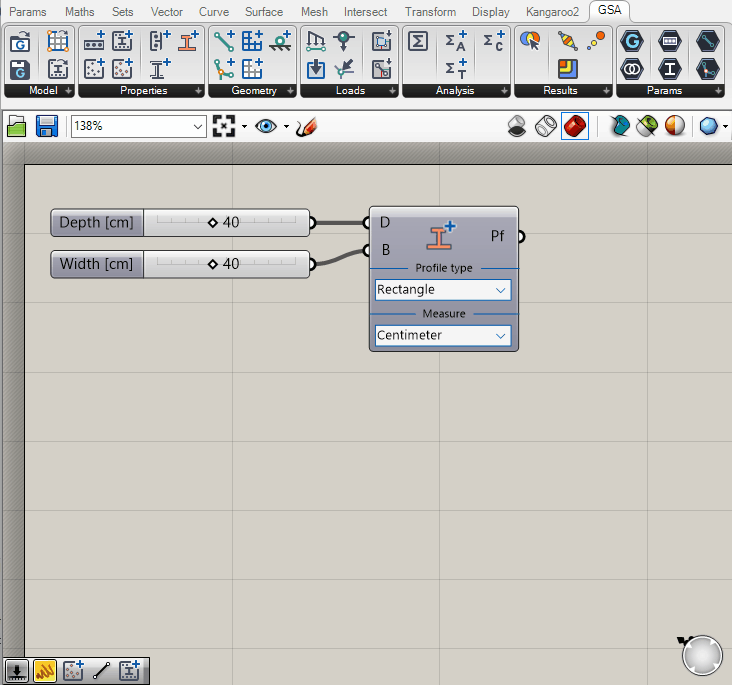

ConvertUnitNumber
